TiSiN Coating , Carbide Ball Nose End Mill , R1.5 , Grain Size 0.5-0.6UM ,   Straight Shank or 4mm Shank
TiSiN Coating , Carbide Ball Nose End Mill , R1.5 , Grain Size 0.5-0.6UM ,   Straight Shank or 4mm Shank
TiSiN Coating , Carbide Ball Nose End Mill , R1.5 , Grain Size 0.5-0.6UM ,   Straight Shank or 4mm Shank
  • TiSiN Coating , Carbide Ball Nose End Mill , R1.5 , Grain Size 0.5-0.6UM ,   Straight Shank or 4mm Shank
  • TiSiN Coating , Carbide Ball Nose End Mill , R1.5 , Grain Size 0.5-0.6UM ,   Straight Shank or 4mm Shank
  • TiSiN Coating , Carbide Ball Nose End Mill , R1.5 , Grain Size 0.5-0.6UM ,   Straight Shank or 4mm Shank

TiSiN Coating , Carbide Ball Nose End Mill , R1.5 , Grain Size 0.5-0.6UM , Straight Shank or 4mm Shank

Place of Origin: China
Brand Name: INMIND
Certification: SGS
Model Number: R1.5*6*4D*50L*2F
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: single packing.
Delivery Time: for sample right now, for order 7 days
Payment Terms: Western Union, T/T, Ali pay, Paypal,
Supply Ability: 70000pcs per month

Description

TiSiN Coating , Carbide Ball Nose End Mill , R1.5 , Grain Size 0.5-0.6UM , Straight Shank or 4mm Shank

Description
Standard: Grain Size: Coating: Dia: Length: Colour: Type: Customised: High Light:
Germany Standard0.6UM
TiSiN Or ALTIN3mm To 6mm
50mmCopper
Standard Length TypeAccpeted

Long end mill

,

extra long carbide end mills



Description:

Ultra-Fine Grain Szie 0.5-0.6um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting long tool life,from roughing to finishing processing,reduce time of changing cutters,improving efficency of machine,saving time of making moulds.Suggest to process iron and steel upto HRC55,Middle-High speed.

Carbide Rod:Wc:88%,Co:12%,TRS:4000N/mm2, Grain Size:0.5-0.6um

TiSiN Coating , Carbide Ball Nose End Mill , R1.5 , Grain Size 0.5-0.6UM ,   Straight Shank or 4mm Shank 0

Quick Detail:

0.5-0.6um Ultra-Fine grain size solid carbide rod

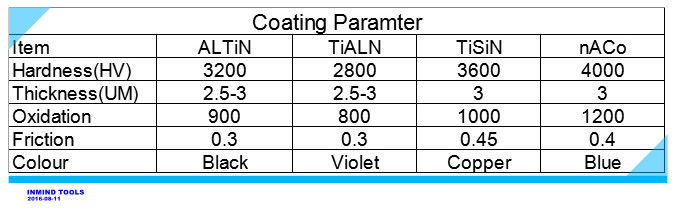

TIALN Coating (Purple),TiSiAlN(Copper), AlTiN ( Black)

Made by 5 AXIS CNC grinder

Checked by Zoller Inspection Equipment

Workpiece upto HRC55

1 piece packing.

Standard Length Type



Applications:

Fit for milling quenching and tempered steel.stainless steel.nickel alloy and Titanium alloy,Cast iron,enhanced composited material with fiberglass,Also fit for milling copper.



Specifications:





Order No Cutting Diameter Flute Length Shank Diameter A.O.L
d l D L

R1.0×4×4D×50L×2F 2 4 4 50
R1.25×5×4D×50L×2F 2.5 4 5 50
R1.5×6×4D×50L×2F 3 4 6 50
R1.75×7×4D×50L×2F 3.5 4 7 50
R2.0×8×4D×50L×2F 4 4 8 50




we also have other standard size:



Order No Cutting Dia Shank Cutting Length A0L
d D l L
R2.5×10×6D×50L×2F 5 6 10 50
R3.0×12×6D×50L×2F 6 6 12 50
R3.5×14×8D×60L×2F 7 8 14 60
R4.0×16×8D×60L×2F 8 8 16 60
R4.5×18×10D×75L×2F 9 10 18 75
R5.0×20×10D×75L×2F 10 10 20 75
R5.5×22×12D×75L×2F 11 12 22 75
R6.0×24×12D×75L×2F 12 12 24 75
R7.0×28×14D×100L×2F 14 14 28 100
R8.0×32×16D×100L×2F 16 16 32 100




Competitive Advantage:

Good and Stable Quality.

New Coating TiSiAlN Improve the performance in high hardness material and stainless steel.

Competitive price.

Help the agent to get the get more large market in the quality products.



TiSiN Coating , Carbide Ball Nose End Mill , R1.5 , Grain Size 0.5-0.6UM ,   Straight Shank or 4mm Shank 1TiSiN Coating , Carbide Ball Nose End Mill , R1.5 , Grain Size 0.5-0.6UM ,   Straight Shank or 4mm Shank 2









Packaging

Carbide:

1 pcs in plastic tube, 10 tubes in a small box, and packed in a carton box(around15 kgs/carton)



Step1: One plastic pipe pack one piece, 10 pieces per group



Step2: Use the air bubble paper to encase the plastic paper



Step3: Put the goods encased with air bubble paper into the carton



Step4: Other packing will be accept according to your needs.



Shipment

---Shipping terms: DHL, UPS, FEDEX, TNT, EMS

--- Loading port: Shanghai, Ningbo, China main port.
