| 12 | Carbide Rod:Ceratizit WF25 | |
| SiN | R Corner:R2.0 (R0.1-R3 Is Available) | |
| Accept | Cutting Length:30mm | |
| Copper | Stock:By Order | |
end mill corner radius,corner rounding end mills |
||
******Description:******
| Length | 30-200mm ;as your requirement |
| Diameter | 3mm-40mm;as your requirement |
| Model Type | End mill;Ball nose end mill;Tapered ball end mill;Reamer;Drills;Center drills;Acrylic cutting tools;Non standard solid carbide cutting tools |
| Tolerance capability | as your requirement or national standard,as fine as we can and keep high precision |
| Feed and RPM | Depends on your different materials;ask sales for specification |
| coating | TIN, TIALN, ALTIN, TIAIN, etc. |
| Raw material |
We provide all kinds material of solid material(HRC45/55 /60 /65/75) ,we do as your requirement. GERMANY KF K40UF K44UF K55UF SWEDEN H10F AM50/AM70 PN90 |
| workpiec | Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc |
| tool life | Longer tool life, super high wear resistant and impact-resistant application. |
| CNC machine | RX7;GX7... automatic CNC grinding machines |
| Coating Paramter | ||||
| Item | ALTiN | TiALN | TiSiN | BALINIT@ ALCRONA PRO |
| Hardness(HV) | 3200 | 2800 | 3600 | 4000 |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation | 900 | 800 | 1000 | 1200 |
| Friction | 0.3 | 0.3 | 0.45 | 0.4 |
| Colour | Black | Purple | Copper | Black |
Quick Detail

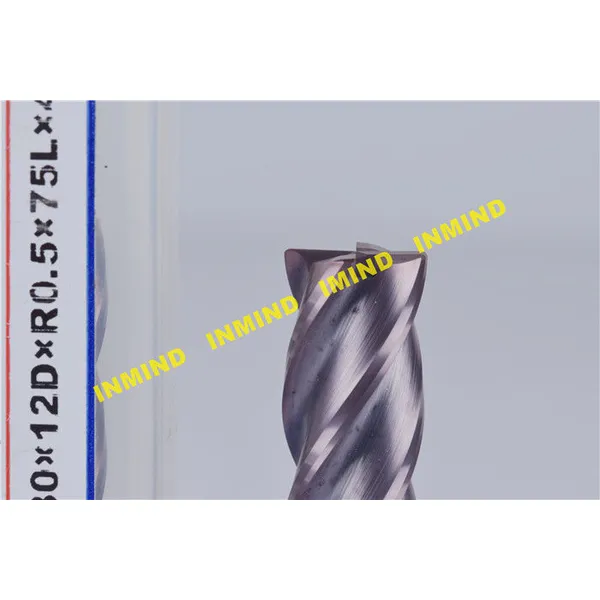

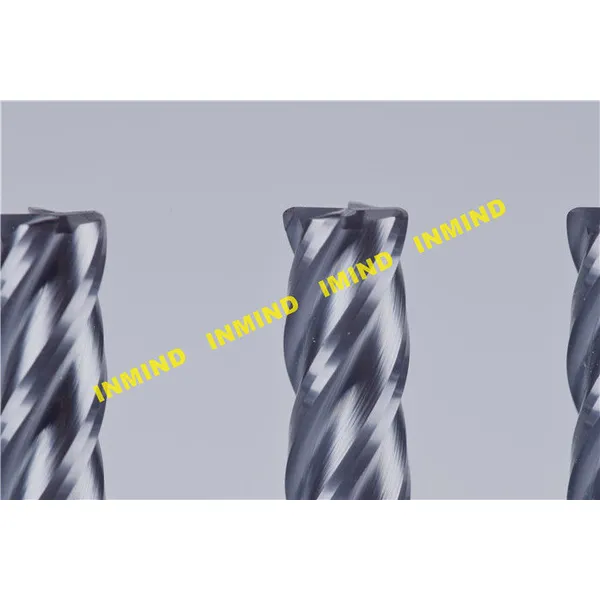

0.5-0.6um Ultra-Fine grain size solid carbide Corner radius end mill
SiN(Copper), BALINIT@ X.CEED
Made by 5 AXIS CNC grinder
Checked by Zoller Inspection Equipment
Workpiece upto HRC55
Standard Type
CB-Ceratizit WF25 Carbide Rods
Specifications:
| order number | Cutting | Cutting Length | Shank | R Corner | AOL |
| d | l | D | R Corner | L | |
| 12×30×12D×R2.0×75L×4F | 12 | 30 | 12 | R2.0 | 75 |
about the corner,we supply from R0.1 to R3.0 for 12mm Corner Radius end mills
we also supply the other size of corner radius endmill(1mm to 12mm)
| order number | Cutting | Cutting Length | Shank | R Corner | AOL |
| d | l | D | R Corner | L | |
| 1.5×3×4D×R0.3×50L×4F | 1.5 | 4 | 4 | R0.3 | 50 |
| 2×6×4D×R0.2×50L×4F | 2 | 6 | 4 | R0.2 | 50 |
| 2×6×4D×R0.3×50L×4F | 2 | 6 | 4 | R0.3 | 50 |
| 2×6×4D×R0.5×50L×4F | 2 | 6 | 4 | R0.5 | 50 |
| 2.5×8×4D×R0.2×50L×4F | 2.5 | 6 | 4 | R0.2 | 50 |
| 2.5×8×4D×R0.5×50L×4F | 2.5 | 6 | 4 | R0.5 | 50 |
| 3×8×3D×R0.3×50L×4F | 3 | 8 | 3 | R0.3 | 50 |
| 3×8×3D×R0.5×50L×4F | 3 | 8 | 3 | R0.5 | 50 |
| 3×8×4D×R0.3×50L×4F | 3 | 8 | 4 | R0.3 | 50 |
| 3×8×4D×R0.5×50L×4F | 3 | 8 | 4 | R0.5 | 50 |
| 4×10×4D×R0.5×50L×4F | 4 | 10 | 4 | R0.5 | 50 |
| 4×10×4D×R1.0×50L×4F | 4 | 10 | 4 | R1.0 | 50 |
| 4×10×6D×R0.5×50L×4F | 4 | 10 | 6 | R0.5 | 50 |
| 4×10×6D×R1.0×50L×4F | 4 | 10 | 6 | R1.0 | 50 |
| 5×13×6D×R0.5×50L×4F | 5 | 13 | 6 | R0.5 | 50 |
| 5×13×6D×R1.0×50L×4F | 5 | 13 | 6 | R1.0 | 50 |
| 6×15×6D×R0.5×50L×4F | 6 | 15 | 6 | R0.5 | 50 |
| 6×15×6D×R1.0×50L×4F | 6 | 15 | 6 | R1.0 | 50 |
| 8×20×8D×R0.5×50L×4F | 8 | 20 | 8 | R0.5 | 60 |
| 8×20×8D×R1.0×50L×4F | 8 | 20 | 8 | R1.0 | 60 |
| 8×20×8D×R1.5×50L×4F | 8 | 20 | 8 | R1.5 | 60 |
| 10×25×10D×R0.5×50L×4F | 10 | 25 | 10 | R0.5 | 75 |
| 10×25×10D×R1.0×50L×4F | 10 | 25 | 10 | R1.0 | 75 |
| 10×25×10D×R1.5×50L×4F | 10 | 25 | 10 | R1.5 | 75 |
| 10×25×10D×R2.0×50L×4F | 10 | 25 | 10 | R2.0 | 75 |
| 12×30×13D×R0.5×50L×4F | 12 | 30 | 12 | R0.5 | 75 |
| 12×30×13D×R1.0×50L×4F | 12 | 30 | 12 | R1.0 | 75 |
| 12×30×13D×R1.5×50L×4F | 12 | 30 | 12 | R1.5 | 75 |
| 12×30×13D×R2.0×50L×4F | 12 | 30 | 12 | R2.0 | 75 |
we also accept customized size by order
