Copper Colour SiN Coating, 2 Flute Ball Nose End Mill , R1.25, Grain Size 0.5UM high precision

China Copper Colour SiN Coating, 2 Flute  Ball Nose End Mill , R1.25, Grain Size 0.5UM high precision supplier
Copper Colour SiN Coating, 2 Flute  Ball Nose End Mill , R1.25, Grain Size 0.5UM high precision supplier Copper Colour SiN Coating, 2 Flute  Ball Nose End Mill , R1.25, Grain Size 0.5UM high precision supplier Copper Colour SiN Coating, 2 Flute  Ball Nose End Mill , R1.25, Grain Size 0.5UM high precision supplier

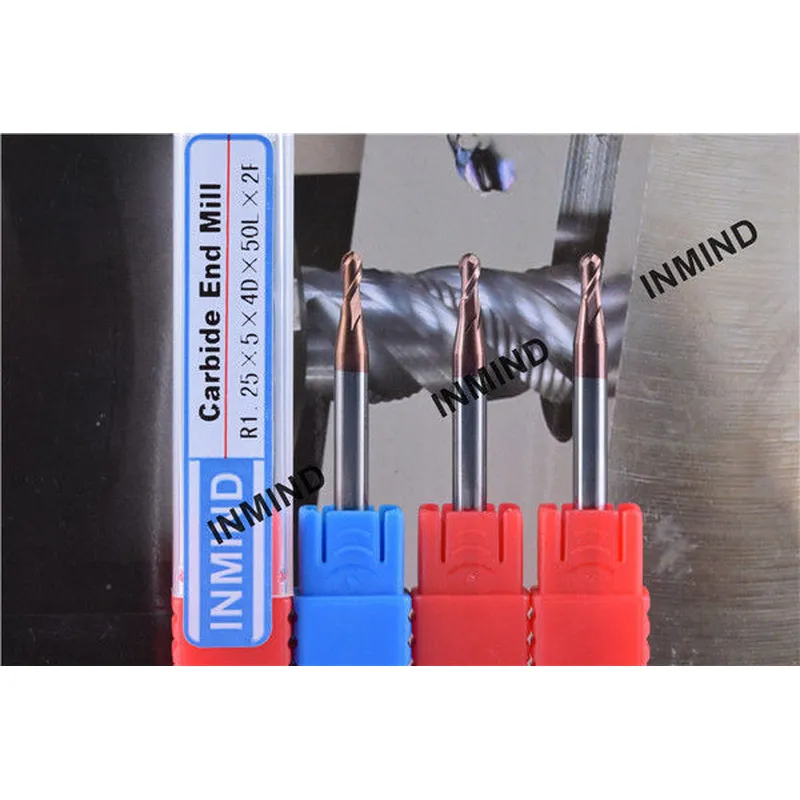

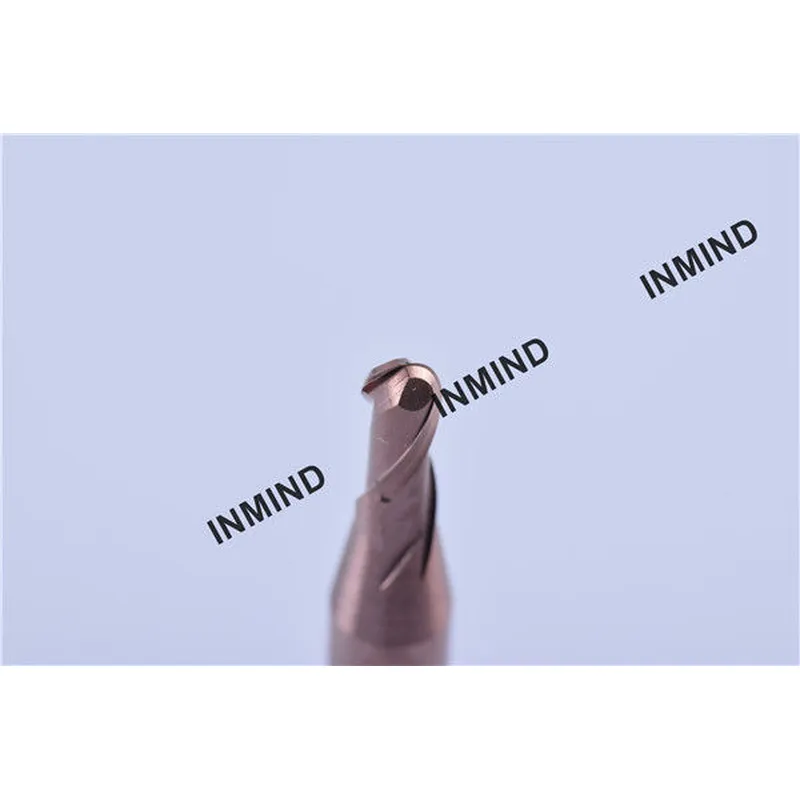

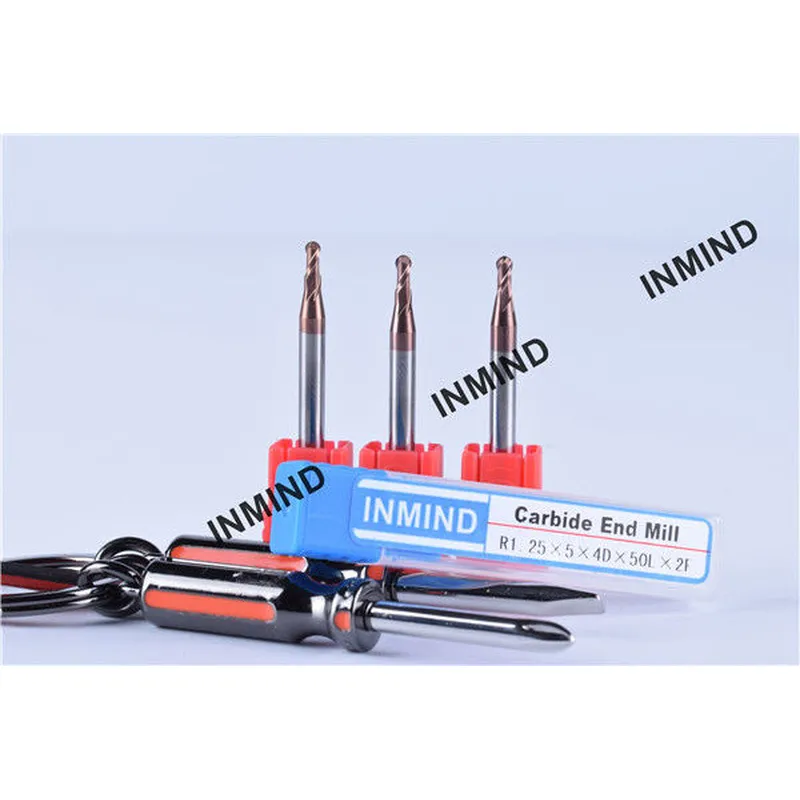

Large Image :  Copper Colour SiN Coating, 2 Flute Ball Nose End Mill , R1.25, Grain Size 0.5UM high precision

Product Details:

Place of Origin: China
Brand Name: INMIND
Certification: SGS
Model Number: R1.25*5*4D*50L*2F

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: PVC single packing
Delivery Time: for sample right now, for order 7 days
Payment Terms: Western Union, T/T, Ali pay, Paypal,
Supply Ability: 50000pcs per month
Contact Now
Detailed Product Description
Standard: Germany Standard Grain Size: 0.5UM
Coating: SiN Dia: 2.5mm To 20mm
Length: 50-100mm Colour: Copper
TRS: 3800N/mm2 Workpiece: Upto HRC55



Description:

Ultra-Fine Grain Szie 0.5-0.6um, Wc carbide rod with high tenacity,with high quality TiAlN coating,getting long tool life,from roughing to finishing processing,reduce time of changing cutters,improving efficency of machine,saving time of making moulds.Suggest to process iron and steel upto HRC55,Middle-High speed.

Carbide Rod:Wc:88%,Co:12%,TRS:4000N/mm2, Grain Size:0.5-0.6um




Quick Detail:

0.5-0.6um Ultra-Fine grain size solid carbide rod

TIALN Coating (Purple),TiSiAlN(Copper), AlTiN ( Black)

Made by 5 AXIS CNC grinder

Checked by Zoller Inspection Equipment

Workpiece upto HRC55

1 piece packing.

Standard Length Type



Coating Paramter
Item ALTiN TiALN TiSiN
Hardness(HV) 3200 2800 3600
Thickness(UM) 2.5-3 2.5-3 3
Oxidation 900 800 1000
Friction 0.3 0.3 0.45
Colour Black Violet Copper

Applications:

Fit for milling quenching and tempered steel.stainless steel.nickel alloy and Titanium alloy,Cast iron,enhanced composited material with fiberglass,Also fit for milling copper.



Specifications:





Order No Cutting Diameter Flute Length Shank Diameter A.O.L
d l D L
R1.25×5×4D×50L×2F 2.5 4 5 50
R1.5×6×4D×50L×2F 3 4 6 50
R1.75×7×4D×50L×2F 3.5 4 7 50
R2.0×8×4D×50L×2F 4 4 8 50



we also have other standard size:



Order No Cutting Dia Shank Cutting Length A0L
d D l L
R2.5×10×6D×50L×2F 5 6 10 50
R3.0×12×6D×50L×2F 6 6 12 50
R3.5×14×8D×60L×2F 7 8 14 60
R4.0×16×8D×60L×2F 8 8 16 60
R4.5×18×10D×75L×2F 9 10 18 75
R5.0×20×10D×75L×2F 10 10 20 75
R5.5×22×12D×75L×2F 11 12 22 75
R6.0×24×12D×75L×2F 12 12 24 75
R7.0×28×14D×100L×2F 14 14 28 100
R8.0×32×16D×100L×2F 16 16 32 100



Competitive Advantage:

Good and Stable Quality.

New Coating TiSiAlN Improve the performance in high hardness material and stainless steel.

Competitive price.

Help the agent to get the get more large market in the quality products.

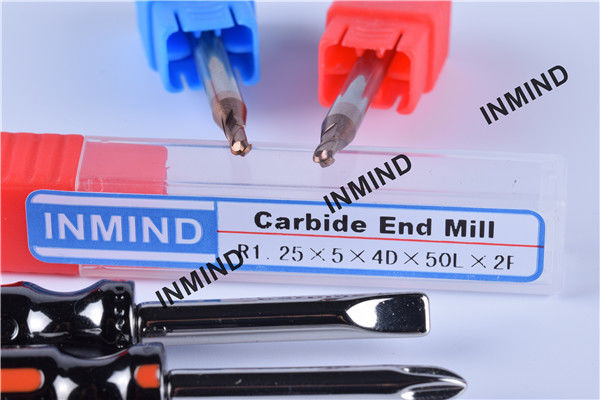

Copper Colour SiN Coating, 2 Flute  Ball Nose End Mill , R1.25, Grain Size 0.5UM high precision

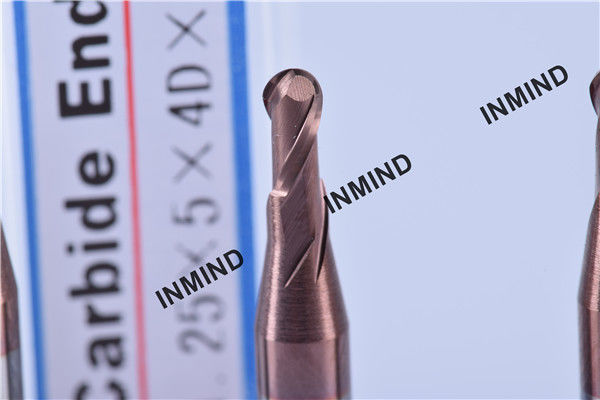

Copper Colour SiN Coating, 2 Flute  Ball Nose End Mill , R1.25, Grain Size 0.5UM high precision



Our quality

1), production strictly control product precision!
2), from the first production workshop to third production workshop. Each workshop with the inspector!
3), each process. Must pass inspection room!
4), strict control
